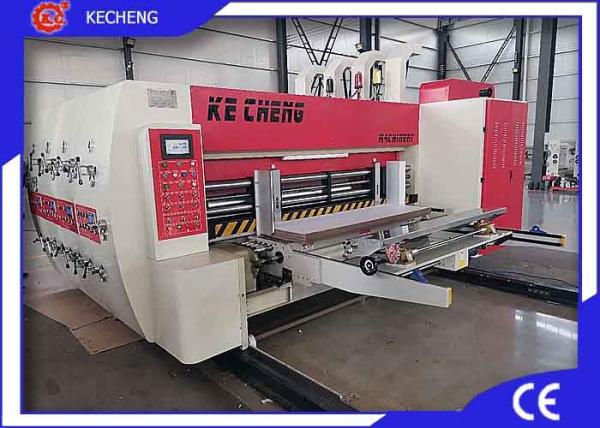

Automatic Feeding Economic Model 3 Color Top Printing Printer Die Cutter

Automatic Feeding Economic Model 3 Color Top Printing Printer Die Cutter is we made for corrugated carton box making companiese, which has KC-M618/920/1224/1228/1632/1836/2245 for option. 1) Lead edge feeder improve the cardboard feeding speed 2) Roller transfer 3) All the interval adjusted by manual control 4) the whole machine is easy to operate,the max speed is 80-160 pcs/min according different cardboard size.

Technologic parameter

Features

1 Feeding Unit

※Separating and combining of the machine and platform undergo electric control added with alarm which rings consecutively during running to ensure worker’s safety

※lead edge feeding system adopting vacuum suction to make wrapping cardboard feeding smooth, air draft volume can be adjusted according to different cardboard.

※Side baffles movement are adjusted by manual control and back baffle movement are adjusted by electric control,easy to operate.

※Upper feeding roller: seamless steel pipe covered with wear-resistant rubber make sure paper fed in good shape.

※ Down feeding roller: seamless steel pipe is plated with chrome and grinded surface.

2 Printing Unit

※ Printing roller:

1) printing roller is seamless steel pipe is plated with rigid chrome and grinded surface;

2) Rectification treatment ensures running stably;

3) Loading and unloading printing plate with electric controlling CW/CCW by foot switch.

※ Pressing roller:

1) Seamless steel pipe is plated with rigid chrome and grinded surface;

2) Rectification treatment ensures running stably

3) Pressing roller interval dial is adjusted by manual control in an adjustment range from 0 to 12mm

※ Anilox roller:

1) Anilox roller seamless steel pipe is plated with rigid chrome and grinded surface, pressing anilox;

2) Automatic pneumatic lifting gear working with feeding system(Anilox roller lowers down to touch printing template during feeding ,rises up to leave printing template after stopping feeding );

※ Ink distributing rubber roller:

1) Rubber roller seamless steel pipe is plated with rigid chrome and grinded surface.

2) Rubber is specially grinded in medium and high grade with excellent ink distributing effect

※ Feeding roller:

1) Upper feeding roller seamless steel pipe with 2 feeding wheels of dia 136mm, plated with rigid chrome and grinded surface.

2) Down feeding roller plated with rigid chrome and grinded surface.

3) Feeding interval dial is adjusted by manual control in an adjustment range from 0 to 12mm

※ Phase adjustment:

1) Planetary structure;

2) Electric numerical adjustment of 360°

3) Horizontal movement can be adjusted by manual control with adjusting distance of 10mm

※ Circulation of ink water:

1) Pneumatic diaphragm pump realized ink supplying, easy to operate and maintain;

2) Oil filter screen can filtrate impurity

Slotter unit

1 Precreasing wheel and creasing wheel wheel make the creasing line formed well

2 Creasing wheel and slotting holder horizontal moving under manual control(electric control for option)

3 Slotting knife circular moving by manual or electric control

4 Single or double shaft slotting structure for option

Die cutting unit

1 Side to side oscillation of anvil drum 50mm

2 Anvil trimming knife Installed for anvil cover treatment

3 Anvil cover brand for option

4 Stacker Machine

★ Option for manual or automatic operation

※ Independent tension adjustment of transmission belt of sheet laying arm is not limited by the equal length of belts.

★ Lifting of machine

※ Driven by mighty chain

※ Height of piling is 1600mm.

※ Machine lifting transmission motor added with brake realizes the fixed position of machine bed without sliding.

※ Added with safety facility to control the lifting of machine and secure the worker.

※ Climbing belt with wrinkled surface prevents sliding of paperboard.

★ Sheet laying baffle

※ Pneumatic sheet laying baffle automatically reaches out to receive and support paperboard when the piled paperboard reaches the height preset

※ Back baffle position is adjusted by manual control.
