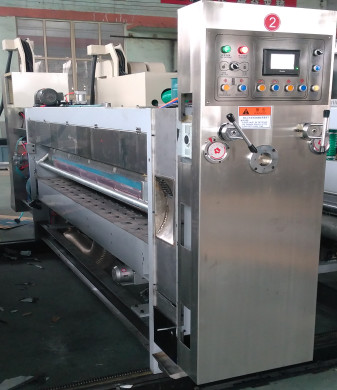

1224 Automatic Vacuum Transfer Corrugated Carton Box Flexo Printer Slotter Die Cutter Machine

Technologic parameter

FEATURES

All the gears are made of 20 CrMnTi ,undergoes quenched and precise grinded for good printing and long life service

All the rollers undergo precise treatment,grinded and plated with rigid chorme and make balance rectification

Bearing has HRB,NTN,NSK for option

Feeder unit

1 Sun alike lead feeder makes cardboard feeding easily and stable, all the baffles adjusted by electric control

2 The air volume adjusted by manual according to different cardboard

3 Dedust system help remove the dust of cardboard surface to make the printing better

4 All the roller intervals are manual or electric control

Printer unit

1 Vacuum transfer

2 Doctor blade chamber ink distribution

3 Ceramic anilox roller

4 Rollers intervals adjusted by electric control

5 All the rollers are precisely grinded and plated with rigid chrome

5 Automatic zeroing

6 Automatic reposition after washing the printing plate during printing

7 Automatic ink washing system for option

IR Dryer(optional)

1 Vacuum transmission ensure printed paperboard smooth deliver

2 Paper jamming detector is equipped, easy for operation. If the paper is jammed, feeder will stop feeding paper automatically

3 High heating temperature to ensure quicken carton printing speed.

4 Computer set up the heating temperature, and the temperature can be adjusted depends on the speed of the machine.Heating temperature 5 displayed on the screen, and alarm can detect if the temperature is too high.

6 If the feeder unit stops, IR unit will stop as well to ensure safety.

Slotter unit

1 Precreasing wheel, creasing wheel and second creasing wheel make the creasing line formed well

2 Creasing wheel and slotting holder horizontal moving under PLC and touch screen control

3 Slotting holder moving via screw axle and linear guide rail

4 Single or double shaft slotting structure for option

5 Rollers interval adjusted by manual or electric control

Die cutting unit

1 Side to side oscillation of anvil drum 50mm

2 Anvil trimming knife Installed for anvil cover treatment

3 Anvil cover brand for option

4 Rollers interval adjusted by manual or electric control

5 Servo driving

Stacker

1 Max stacking height 1600mm

2 Chain driving or hydraulic driving for option

3 Safety device installed to avoid the collection cabinet drop suddenly

4 Good quality convey belt for long time service

Exhibition

Customer

Dongguang Kecheng Machinery Manufacturing Co.,Ltd.(K.C.), established in 1999,   Cangzhou Yongjin Internation Trading Co.,Ltd. (YJ)  is  the export company for Kecheng Machine, which is committed to supplying the good quality carton machines to the clients all over the world.

K. C. is specialized in various carton printing machinery to meet the diversified demand from the clients. Here are Top Printing Printer Gluer Inline ,Top Printing Printer Slotter Die Cutter, Bottom Printing Printer Gluer Inline,Bottom Printing Printer Slotter Die Cutter,Folder Gluer, Stitching Machine for option,no matter roller transfer or vacuum transfer, rubber roller with ceramic anilox roller or doctor blade chamber with ceramic anilox roller, any kinds of machine will get the quality guarantee before delivered out of our company.

K.C uses the techlogic management to make all the procedure go well, so we can respond to clients needs rapid under the support of the experienced and professional team. ONE STOP solution service makes the clieints business easier.Thanks to the integraty of the service, manufacturing productivity and product quality, K.C. is growing by building the solid partner with clients and suppliers.In order to make sure the machine quality, the manufacturing standard must be complied with our company standard which beyond the common industrial standards. All the  parts purchased are from the ourstanding and experienced supplier.

The goal we pursue is to be the trusted quality supplier in the carton machiney field for years and believe the following competitive strengths enable us to capitalize on the growth opportunities :

• Good quality machines with high performance and stability;

• Rapid repond to clients needs with precision and affciency

• Making sure all the parts qualified with long life service and secure;

• Manufacturing the easy-operation machine with capacity and utilization;

• Keeping the promises we make with honesty and sincerity.

K.C. will continue to focus on how to make the machine more technologic and efficient. We deeply undertand the world is changing so  fase, we also change our thought and improve our design and technology to make sure the the machine can increase the profit for the clients

Your success is our horner, expect to cooperate with you soon
